SP-11-GDK Grid Drain Kit

Description

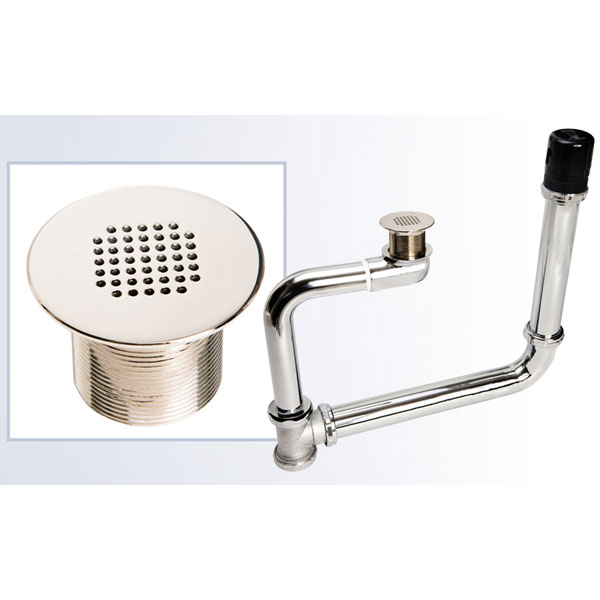

Standard lavatory grid drains can be used as a point of ligature attachment by threading a string or lace through the holes of the grid. The SP-11-GDK greatly reduces this hazard by utilizing holes less than half the diameter of the typical grid drain. Effective drainage is achieved with the included air vent. This grid drain is not designed for use with sinks with overflows. Overflows are a point of ligature.

Drain kits are also available for the 3.5″ openings of kitchen sinks. Ask for the SP-11-GDK-K.

Print/Download SP-11-GDK Submittal Sheet

Print/Download SP-11-GDK-K Submittal Sheet

Specifications

• Grid Drain:
  • Plated Brass
  • 2-1/4″ OD
  • 3/32″ Dia Holes

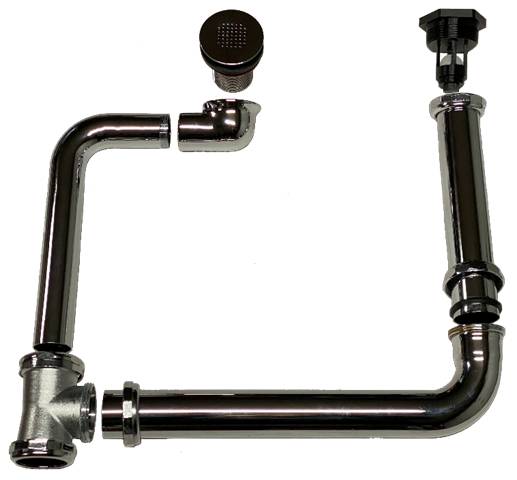

• Other Components:
  • Rubber washer, red fiber washer, chrome plated brass locknut
  • 1-1/4″ chrome plated brass elbow and offset tailpiece, 17 ga
  • Chrome plated cast brass slip joint tee 1-1/4″ x 1-1/2″ x 1-1/2″
  • 1-1/2″ x 12″ chrome plated brass waste bend, 22 ga
  • 1-1/2″ x 8″ chrome plated brass flanged tail piece, 22 ga
  • Air vent with float ball check
• Operation: Drainage flow rate exceeds 2.3 gpm with vent system
• Installation: Grid drain fits in standard 1-5/8″ sink openings. The tee has 1-1/2″ slip joint connection to P-trap (not included). Requires cutting of tubular brass components to fit the air admittance valve under the sink. Cannot be used with sinks with overflows.
