SP-8 Mirror & Mirror Guard


Description

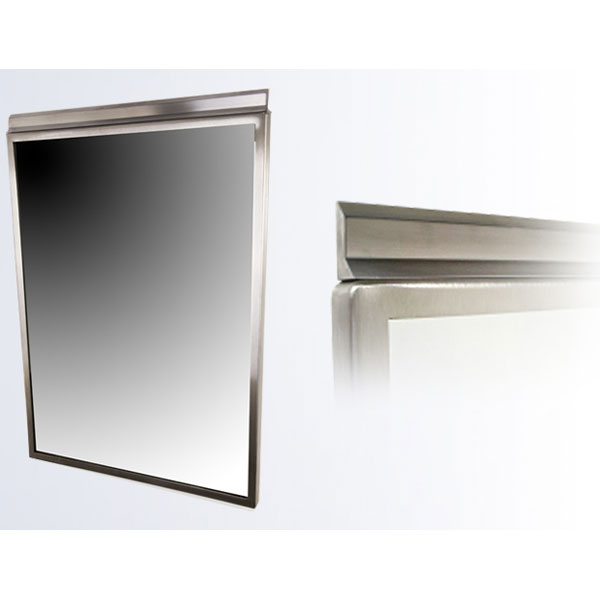

The SP-8 Mirror is offered in tempered glass and polished stainless steel in a variety of sizes. The stainless steel frame has corners mitered, welded, and ground smooth to eliminate attachment points and sharp edges. Ligature resistance can be increased by creating a sloped top surface with our optional Mirror Guard (shown on top of mirror in the pictures).

Print/Download Submittal Sheet


Specifications

  • Dimensions: 3/4″ thick x specified length/width (18″ x 24″ standard)
  • Frame:
    • Material: 304 stainless steel, 18 gauge, with corners mitered, welded and ground smooth
    • Finish: No. 4 Satin
  • Reflective Surface: Tempered glass or polished stainless steel.
  • Mirror Guard: (Sold separately)
    • Dimensions: 1-1/4″ tall x 5/8″ thick (max)
    • Material: 6063-T6 Aluminum
    • Finish: Bright aluminum
  • Installation: Includes concealed mounting bracket. The frame has locking screws, top and bottom. Mirror guard is secured directly to the wall with screws (not included).

Print/Download Installation Instructions
